CMA System
CMA system consists of 4 nickel-titanium rotary endodontic instruments for root canal shaping and retreatment. The use of CMA instruments with an ENDO motor with the “auto reverse” function is advised.
Characteristics
A unique and simple sequence:
The same instruments for shaping and removing filling canal materials.
The same instruments for shaping and removing filling canal materials.
Simplicity:
Only one and
the same sequence
for treatment and
retreatment.
Only one and
the same sequence
for treatment and
retreatment.
The same sequence for:
simple, curved and fine canals of monoradicular teeth and molars.
simple, curved and fine canals of monoradicular teeth and molars.
Advantages

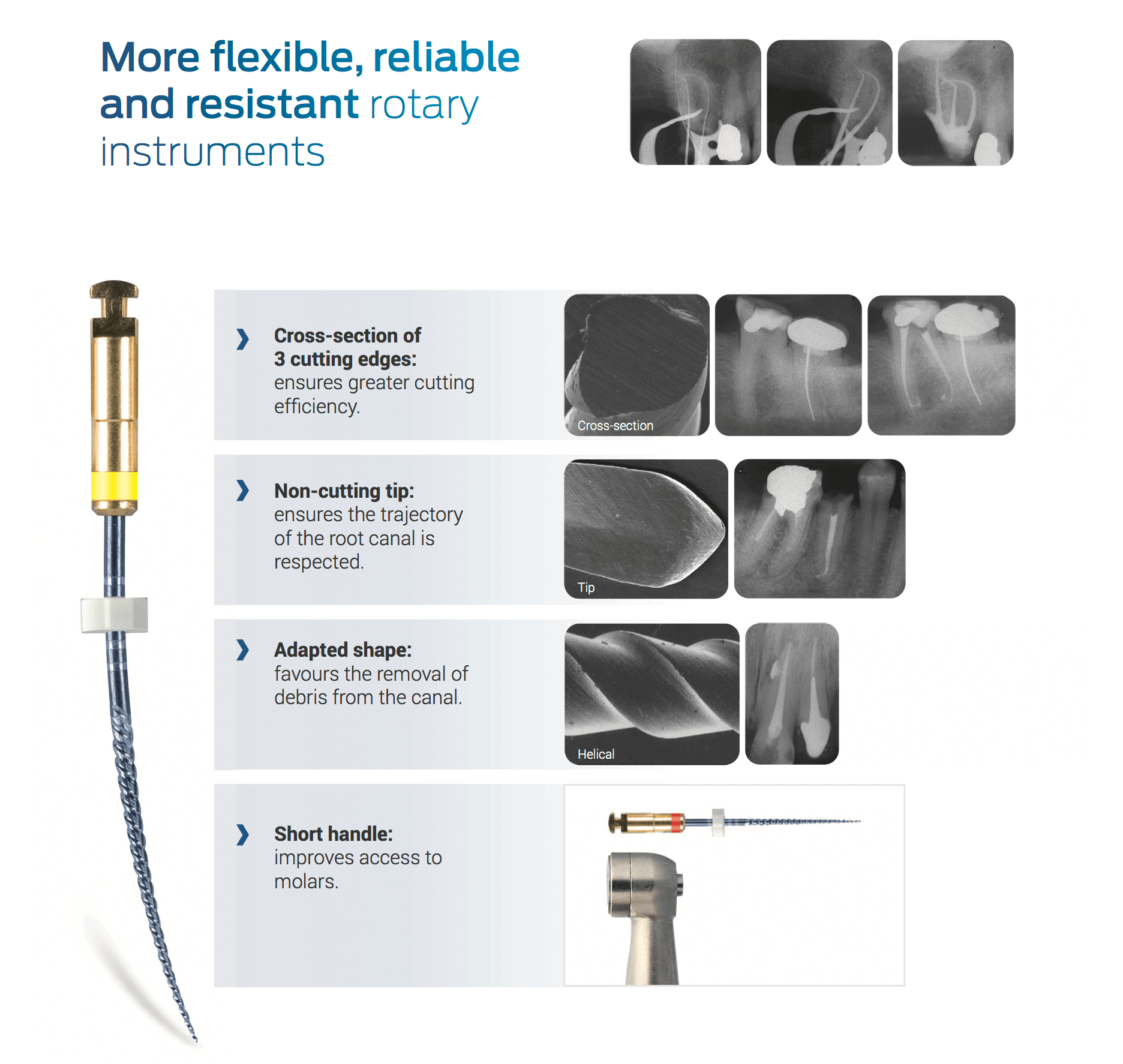

Reassuring and resistant rotary instruments.
Not sharp point:
Respect for canal trajectories.
Respect for canal trajectories.
Short handle (11mm):
Improves access to posterior zones.
Improves access to posterior zones.

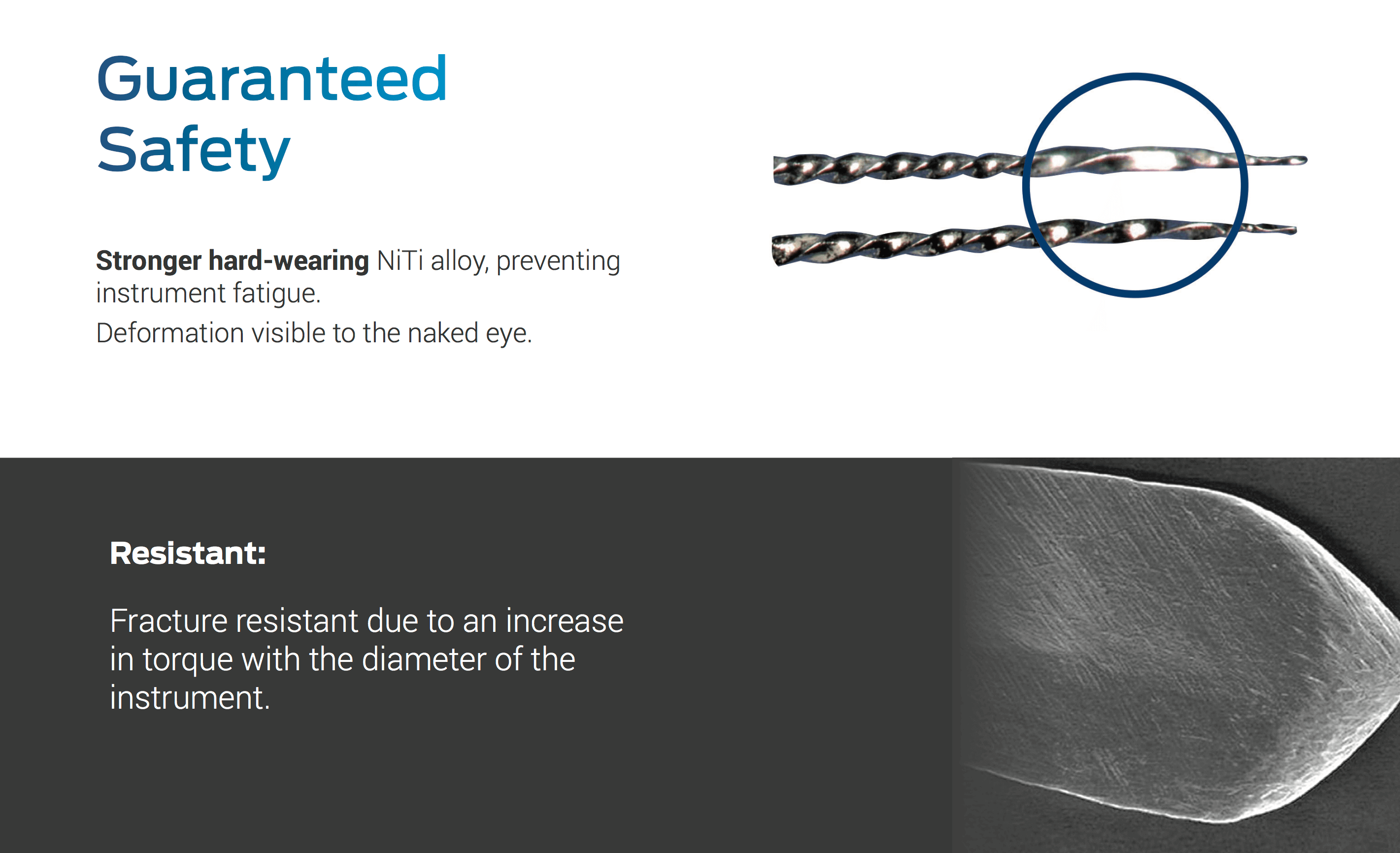

Deformation of the instrument visible to the naked eye:
Preventing the instrument fatigue.
Preventing the instrument fatigue.
| Refill of 6 NiTi rotary instruments | Taper | ø Tip | Ring | Total length | |
|---|---|---|---|---|---|
| C |  Coronal | 10% | 25 | White | 17mm |
| M |  Median | 6% | 25 | Yellow | 21mm 25mm |
| A |  Apical 1 | 4% | 20 | Red | 21mm 25mm 29mm |
 Apical 2 | 6% | 20 | Blue | 21mm 25mm 29mm | |
Instructions for use
| Speed on treatment | 300 to 400 rpm | |
|---|---|---|
| Torque on treatment | 2 N/cm | |
| Speed on retreatment | 400 to 600 rpm | |
| Torque on retreatment | 2 N/cm | |
| Movement | Progression towards the apex by continuous short and rapid up-and-down strokes, finishing off with a “brushing” movement on the root canal walls. |
